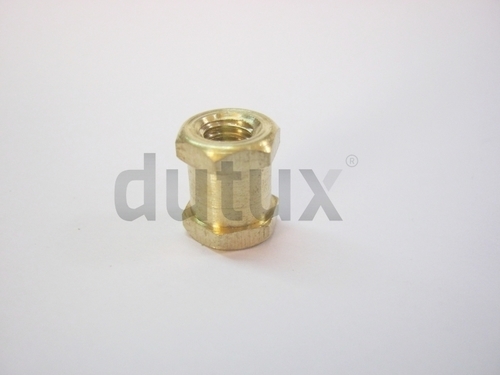

Brass Headed Screw in Insert
110 INR/Pack
Product Details:
- Type BRASS INSERTS
- CNC Machining Yes
- Diameter 1 Millimeter (mm)
- Tolerance 0.02 Millimeter (mm)
- Warranty NO
- Click to View more
X
Brass Headed Screw in Insert Price And Quantity
- 1000 Pack
- 110 INR/Pack
Brass Headed Screw in Insert Product Specifications
- BRASS INSERTS
- NO
- 1 Millimeter (mm)
- 0.02 Millimeter (mm)
- Yes
Brass Headed Screw in Insert Trade Information
- JNPT,NAHVA SEHVA,MUNDRA
- 200000 Pack Per Day
- 30 Days
- Yes
- Contact us for information regarding our sample policy
- as per customer required
- Australia Central America South America Middle East Western Europe Asia Eastern Europe North America Africa
- All India
Product Description
We have been one of the prominent manufacturers, exporters and suppliers of Brass Headed Screw in Insert since 2002. Offered screw is widely demanded among customers due to its wide usage in many mechanical industries such as automobiles and marine. Additionally, this screw is manufactured using quality tested brass under the supervision of ingenious professionals. Owing to its features like sturdy design, rust proof, high strength, etc., this screw is highly cherished among clients. This Brass Headed Screw in Insert can be purchased from us at reasonable prices.
Key Points:
- Excellent threading
- Flawless finish
- Robustness
- Low maintenance
Brass Headed Screw In Inserts
Technical specification
|
Thread |
L |
H |
T |
Pilot Hole |
|
M2.5 |
4.0 / 5.25 |
6.35 |
0.6 |
3.8-4.1 |
|
M3 |
4.0 / 5.25 |
7.1 |
0.75 |
4.1-4.4 |
|
M3.5 |
5.0 / 6.2 |
8.3 |
0.75 |
5.0-5.3 |
|
M4 |
5.6 / 7.1 |
8.7 |
0.75 |
5.8-6.1 |
|
M5 |
6.4 / 8.4 |
11.1 |
0.90 |
6.9-7.2 |
|
M6 |
7.9 / 9.8 |
12.0 |
1.0 |
8.0-8.4 |
|
M8 |
7.5 / 12.4 |
14.3 |
1.25 |
10.1-10.6 |
|
M10 |
12.0 / 16.0 |
18.0 |
1.5 |
13.0-13.5 |
All dimensions in mm.
Pilot hole dimensions are for reference purposes only.
Brass Screw-in/Reduced Head
|
Thread |
L |
H |
T |
Pilot Hole |
|
M3 |
6.25 |
4.7 |
0.75 |
4.1-4.4 |
|
M4 |
8.4 |
6.3 |
0.80 |
5.8-6.1 |
|
M5 |
10.0 |
7.5 |
0.8 |
6.9-7.2 |
|
M6 |
7.9 / 12.0 |
8.6 |
0.9 |
8.0-8.4 |
|
M8 |
14.0 |
11.1 |
1.0 |
10.1-10.6 |
All dimensions in mm.
Pilot hole dimensions are for reference purposes only.
- Brand Name : dutux
- Metal: Brass / Copper Alloy
- Brass Headed Screw-in InsertRod : Casting / Extrusion
- Free Cutting Brass IS 319 Type (l)
- Free Cutting Brass as per BS 249 Type(I)
- Generally Free Machine Grade of CuZn37Pb3 equivalent to BS 2874 is used to manufacture various brass threaded inserts in form of round, Hexagon, Square etc
- Other grades which are followed as per custom requirements are CZ 121, CZ 131, C3604, CDA 360, and DTD 627 etc
- High Grade Free Cutting Brass.
- Any Special Brass Material Composition as per customers requirement
- ISO Metric (MM Threads)
- BA Threads
- BSW Threads (Inches)
- UNC, UNF,UNEF and NPT Threads
- BSP & BSPT (Parallel & Taper Threads)
- Any threads as per specifications
- Natural
- Golden Finish
- Silver Finish
- Nickle Platted
- Chrome Platted
- Tin Plated
- Any coating as per customer specifications
- Bag Packaging,
- Inner Plastic Packing,
- Carton Packaging,
- Wooden Carton Packing
Special Features :
- Thread as per international Go and Not Go Gauge Standard.
- Deep Groove for maximum Pull out Resistance.
- Inner Diameter (ID) after threading with very close tolerance to prevent unrequired flush to enter into brass inserts.
- Plastic Industries
- Furniture Industry
- Electronic Industry
- Automobile Industry,etc...
Brass Headed Screw-in InsertMOQ : 1000 Pieces
Brass Headed Screw-in InsertLead Time : 3 Working Days
Brass Headed Screw-in InsertAvailable Price :
- EX-Work
- FOB - Free On Board
- C&F - Cost And Freight
- CIF - Cost, Insurance and Freight
Specialized in Brass Inserts
Product details
- Height : 18
- Length Short and Long : 12.0 / 16.0
- Model Number : DBI-006
- Pilot Hole : 13.0-13.5
- Thickness : 1.5
- Material : Brass
- Thread Size : M10
- Brand : Dutux
- Shape : Round
- Usage/Application : Pipe Fitting
FAQs of Brass Headed Screw in Insert:
Q: What is the diameter of the Brass Headed Screw in Insert?
A: The diameter of the Brass Headed Screw in Insert is 1 millimeter (mm) with a tolerance of 0.02 millimeter (mm).Q: Does the Brass Headed Screw in Insert come with a warranty?
A: No, the Brass Headed Screw in Insert does not come with a warranty.Q: What type of inserts are the Brass Headed Screws?
A: The Brass Headed Screws are BRASS INSERTS.Q: Can the Brass Headed Screw in Insert be used for CNC machining?
A: Yes, the Brass Headed Screw in Insert can be used for CNC machining.Q: Are there any additional sizes available for the Brass Headed Screw in Insert?
A: No, the only available size for the Brass Headed Screw in Insert is 1 millimeter (mm) in diameter.Enter Buying Requirement Details
