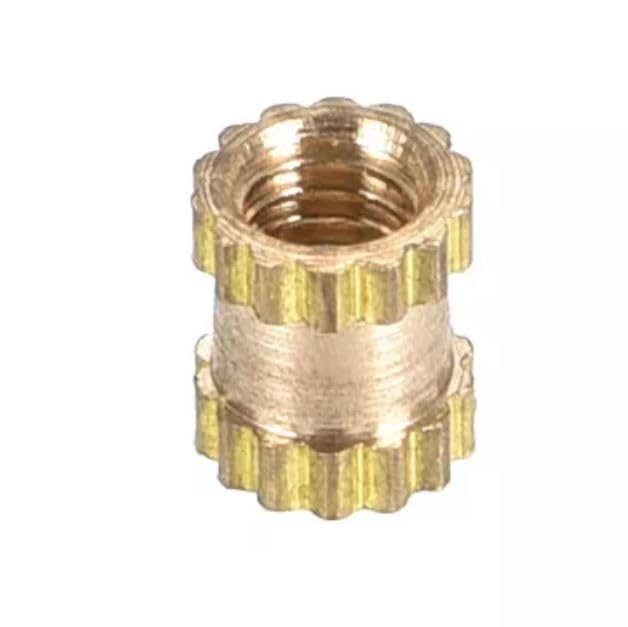

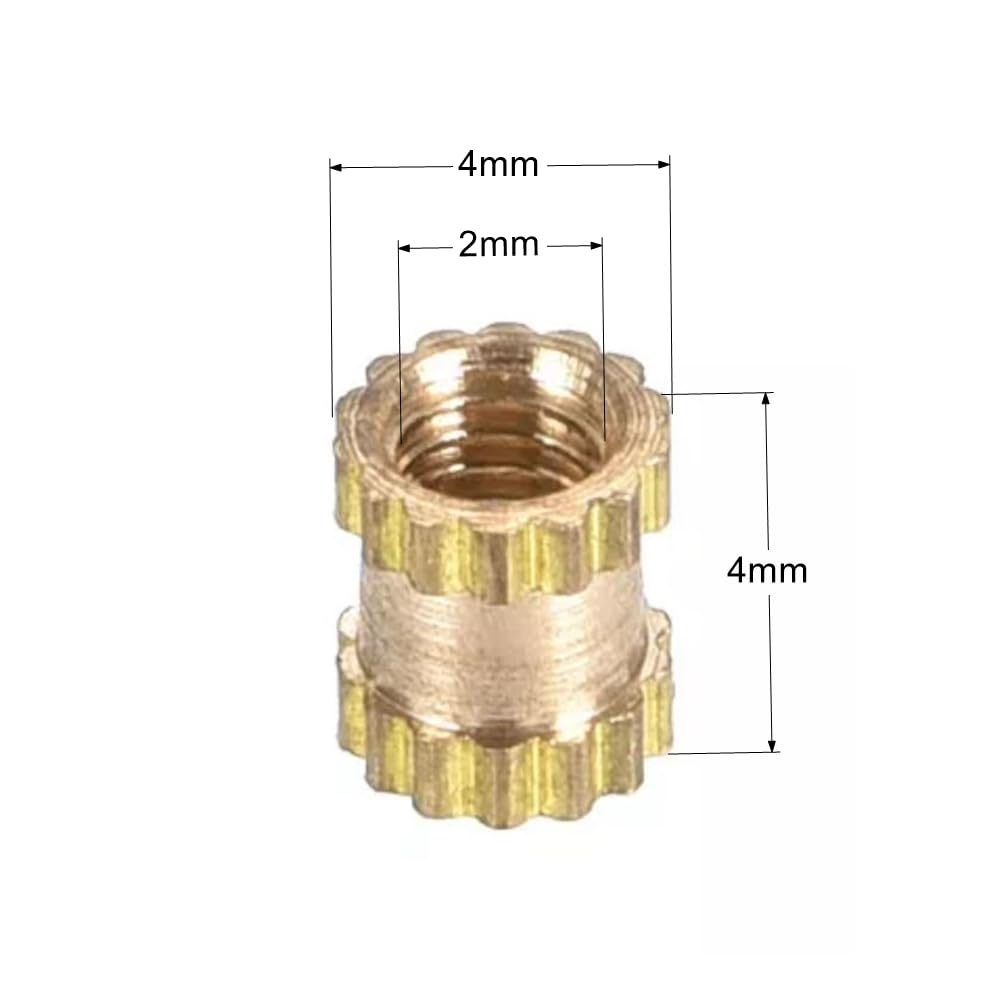

precision turned brass insert

Product Description

A precision-turned brass insert is a type of threaded fastener that has been manufactured using highly accurate and automated machining processes, typically on a CNC (Computer Numerical Control) lathe or a Swiss screw machine. The term "precision turned" refers to the method of production, which is a subtractive process where a rotating brass rod is shaped by a cutting tool with extremely tight tolerances and a high degree of repeatability.

Key Characteristics

• Exceptional Accuracy: The defining feature of a precision-turned insert is its high level of accuracy. CNC machines can produce parts with tolerances measured in microns, ensuring every insert is an exact match to the design specifications. This is critical for applications that require a perfect fit and consistent performance.

• High-Quality Finish: The turning process produces a smooth, burr-free surface finish, both on the threads and the body of the insert. This premium finish ensures that the threads engage smoothly and correctly, reducing the risk of cross-threading or binding.

• Complex Geometries: Precision turning allows for the creation of intricate designs that would be difficult or impossible to produce with other methods. This includes a variety of knurling patterns (straight, diamond, or helical), undercuts, grooves, and internal or external threads of different standards (e.g., ISO, UNC, UNF). These features are essential for a strong mechanical interlock with the host material.

• Consistency: The use of computer-controlled machines ensures that every insert in a production run is virtually identical. This consistency is crucial for automated assembly processes and for ensuring the reliability of the final product.

• Material Utilization: The turning process is efficient in its use of material. Any leftover brass from the turning process can be easily recycled, making it an environmentally friendly option.

Manufacturing Process

The manufacturing of precision-turned brass inserts typically involves these steps:

1. Material Loading: A brass rod or bar stock is fed into a high-speed CNC lathe.

2. Turning: The lathe rotates the brass stock at high speeds while a cutting tool shapes the external features of the insert, such as the knurling and overall diameter.

3. Drilling and Tapping: The machine drills a hole down the center of the part and then cuts the internal threads (tapping).

4. Special Features: The machine can perform additional operations, such as milling slots, cross-drilling holes, or creating a specific surface texture.

5. Parting Off: Once all features are complete, a cutting tool separates the finished insert from the brass bar stock.

Applications

Precision-turned brass inserts are used in high-tech and high-reliability applications where quality and precision are non-negotiable.

• Aerospace: Components for aircraft interiors and instruments where weight and reliability are critical.

• Medical Devices: Housings, connectors, and internal components for sensitive medical equipment.

• Electronics: Inserts for circuit boards and consumer electronics, ensuring secure and precise mounting of components.

• Automotive: Parts for engines, sensors, and interior components that must withstand vibration and temperature changes.

In essence, a precision-turned brass insert is more than just a fastener; it's a meticulously crafted component designed for applications where failure is not an option. Its manufacturing process guarantees a level of accuracy and quality that is essential for modern, high-performance products
