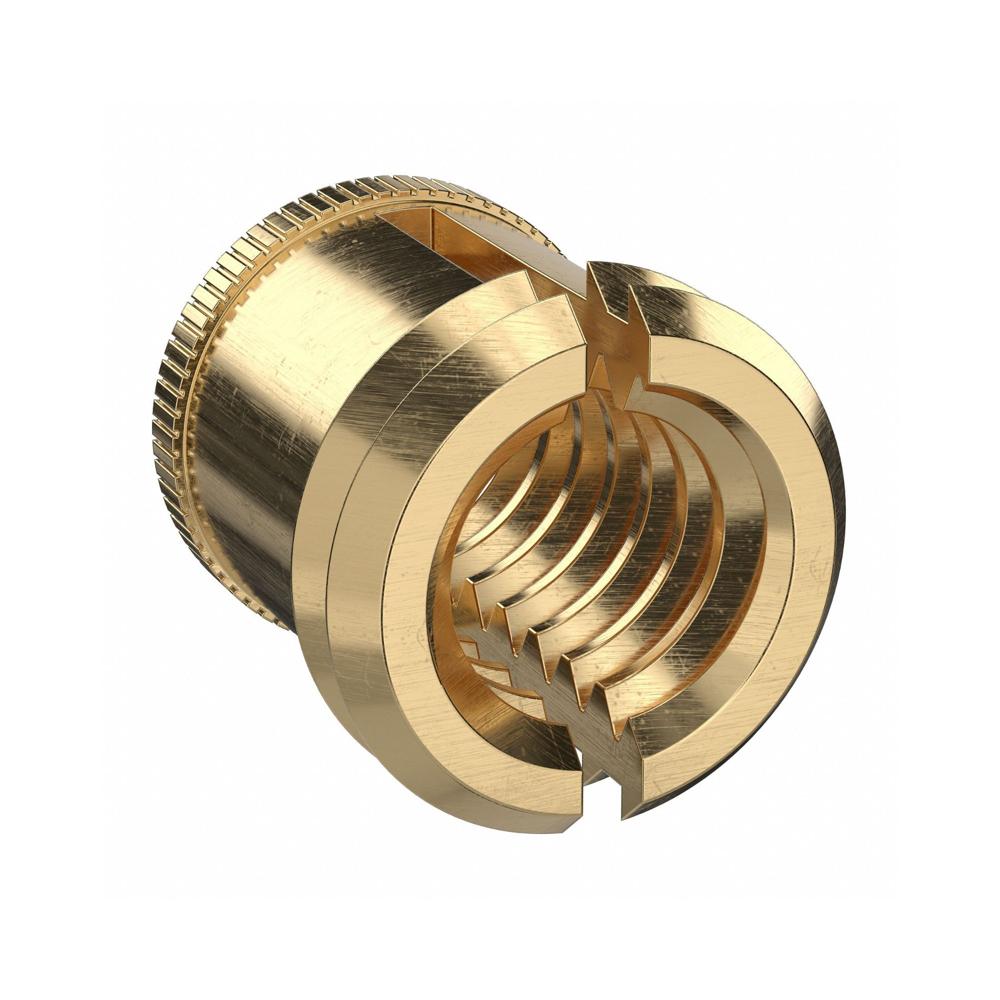

Brass Multi Headed Insert

Brass Multi Headed Insert

110 INR/Pack

Product Details:

  • Type BRASS INSERTS
  • CNC Machining Yes
  • Diameter 1 Millimeter (mm)
  • Tolerance 0.02 Millimeter (mm)
  • Warranty NO
  • Click to View more
X

Brass Multi Headed Insert Price And Quantity

  • 1000 Pack
  • 110 INR/Pack

Brass Multi Headed Insert Product Specifications

  • BRASS INSERTS
  • 0.02 Millimeter (mm)
  • 1 Millimeter (mm)
  • NO
  • Yes

Brass Multi Headed Insert Trade Information

  • JNPT,NAHVA SEHVA,MUNDRA
  • 200000 Pack Per Day
  • 30 Days
  • Yes
  • Contact us for information regarding our sample policy
  • As per customer required
  • Australia South America Middle East Western Europe Central America Africa Asia Eastern Europe North America
  • All India

Product Description



We have gained an immense expertise in this domain by offering Brass Multi Headed Insert. The provided insert is manufactured under the supervision of our experienced engineers with the aid of pioneering techniques. This insert is highly demanded in the industry for adding threaded holes in plastic and wood. Along with this, the offered Brass Multi Headed Insert is available for our clients at rock bottom prices.

Key points:

  • Simple installation

  • Optimum tensile strength

  • Faultless design

  • Perfect finish

Brass Multi Headed Insert

Thread
Size

Available
Lengths(L)

Available
H

Available
T

Pilot Hole

M1.6

2.0

3.2

0.50

2.3-2.5

M2

2.0 / 4.2

4.8

0.50

3.0-3.3

M2.5

4.1 / 5.2

5.5 / 7.1

0.75

3.7-4.0

M3

4.1 / 5.2

5.5 / 7.1

0.75 / 1.50

3.7-4.0

M3.5

4.1 / 7.1

6.4 / 7.9

0.75 / 1.50

4.6-5.0

M4

5.6 / 8.5

7.1 / 8.7

0.75 / 1.50

5.4-5.9

M5

6.6 / 10.1

7.9 / 11.1

0.90 / 1.75

6.0-6.5

M6

7.7 / 12.3

9.5 / 12.7

1.00 / 2.00

7.7-8.2

M8

10.1 / 13.8

12.7 / 14.3

1.25 / 2.50

10.2-10.6

M10

13.8

14.3

2.50

12.5 - 13.0

All dimensions in mm.
Pilot hole dimensions are for reference purposes only.

  • Brand Name : dutux
  • Brass Multi Headed InsertMetal: Brass / Copper Alloy
  • Brass Multi Headed InsertRod : Casting / Extrusion

Brass Multi Headed InsertMaterial:

  • Free Cutting Brass IS 319 Type (l)
  • Free Cutting Brass as per BS 249 Type(I)
  • Generally Free Machine Grade of CuZn37Pb3 equivalent to BS 2874 is used to manufacture various brass threaded inserts in form of round, Hexagon, Square etc
  • Other grades which are followed as per custom requirements are CZ 121, CZ 131, C3604, CDA 360, and DTD 627 etc
  • High Grade Free Cutting Brass.
  • Any Special Brass Material Composition as per customers requirement

Brass Multi Headed InsertThreads:

  • ISO Metric (MM Threads)
  • BA Threads
  • BSW Threads (Inches)
  • UNC, UNF,UNEF and NPT Threads
  • BSP & BSPT (Parallel & Taper Threads)
  • Any threads as per specifications
Brass Multi Headed InsertFinishing & Coating:
  • Natural
  • Golden Finish
  • Silver Finish
  • Nickle Platted
  • Chrome Platted
  • Tin Plated
  • Any coating as per customer specifications

Brass Multi Headed InsertPacking Details :

  • Bag Packaging,
  • Inner Plastic Packing,
  • Carton Packaging,
  • Wooden Carton Packing

Brass Multi Headed InsertSpecial Features :

  • Thread as per international Go and Not Go Gauge Standard.
  • Deep Groove for maximum Pull out Resistance.
  • Inner Diameter (ID) after threading with very close tolerance to prevent unrequired flush to enter into brass inserts.

Brass Multi Headed InsertApplication / Usage:

  • Suitable for ultrasonic, heated or cold press-in installation into most grades of plastic and for light loading applications in wood and composites.
  • Plastic Industries
  • Furniture Industry
  • Electronic Industry
  • Automobile Industry,etc...
Brass Multi Headed InsertMOQ : 1000 Pieces

Brass Multi Headed InsertLead Time : 3 Working Days

Brass Multi Headed InsertAvailable Price :

  • EX-Work
  • FOB - Free On Board
  • C&F - Cost And Freight
  • CIF - Cost, Insurance and Freight

Specialized in Brass Inserts

Product details

  • Available Height : 14.3
  • Available Length : 13.8
  • Available Thickness : 2.5
  • Model Number : DBI-010
  • Pilot Hole : 12.5 - 13.0
  • Thread Size : M10
  • Shape : Round
  • Usage/Application : PLASTIC MOULDING AND ELECTRIC PARTS
  • Brand : Dutux


FAQs of Brass Multi Headed Insert:


Q: What is the tolerance of the Brass Multi Headed Insert?

A: The tolerance of the Brass Multi Headed Insert is 0.02 Millimeter (mm).

Q: What type of inserts are included in the product?

A: The Brass Multi Headed Insert is made of BRASS INSERTS.

Q: What is the diameter of the Brass Multi Headed Insert?

A: The diameter of the Brass Multi Headed Insert is 1 Millimeter (mm).

Q: Does the product come with a warranty?

A: No, the Brass Multi Headed Insert does not come with a warranty.

Q: Is the Brass Multi Headed Insert suitable for CNC machining?

A: Yes, the Brass Multi Headed Insert is suitable for CNC machining.
