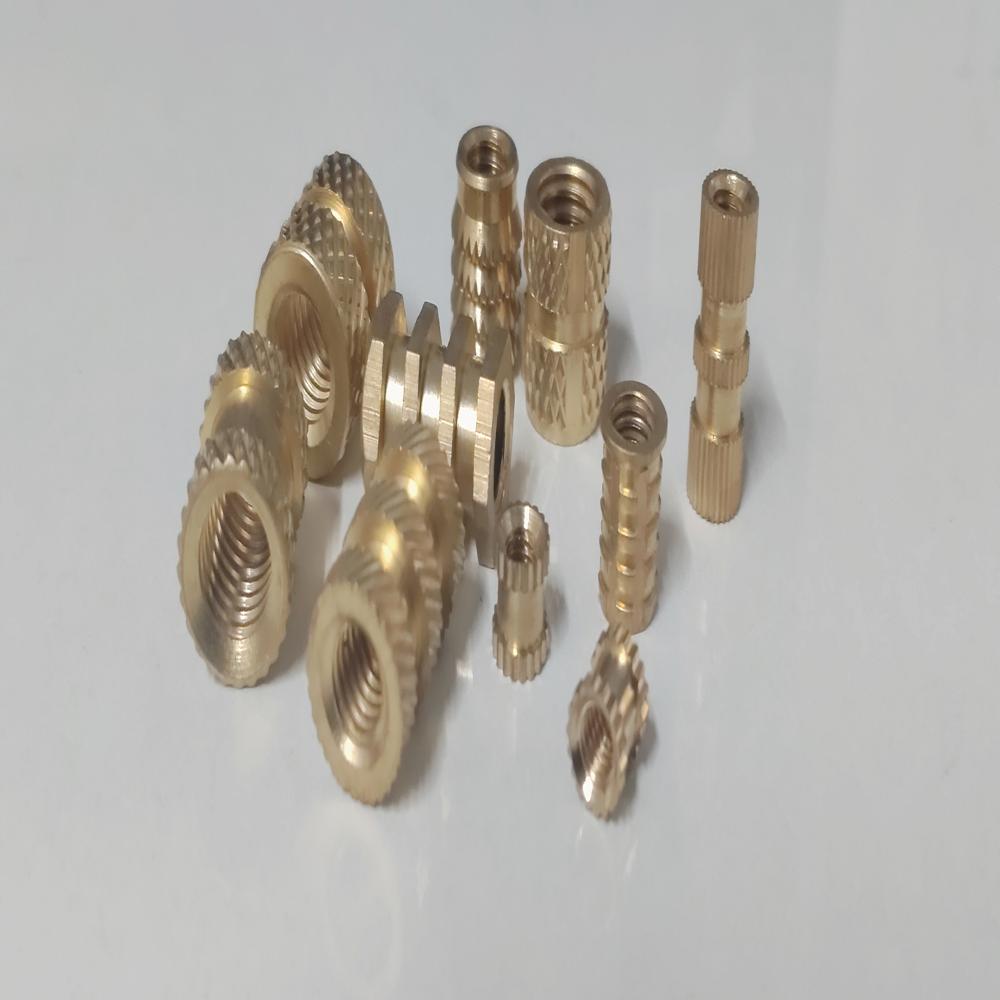

|Brass Multi Unheaded Insert|
|Thread Size||Available Lengths(L)||Pilot Hole|
|M2||3.1 / 4.2||3.0-3.3|
|M2.5||4.1 / 5.2||3.7-4.0|
|M3||4.1 / 5.2||3.7-4.0|
|M3.5||4.1 / 7.0||4.6-5.0|
|M4||5.6 / 8.5||5.4-5.9|
|M5||6.6 / 10.0||6.0-6.5|
|M6||7.7 / 12.3||7.7-8.2|
|M8||8.3 / 13.8||10.2-10.6|
|M10||10.5 / 16.1||12.5-13.0|
Free Cutting Brass IS 319 Type (l)
Free Cutting Brass as per BS 249 Type(I)
Generally Free Machine Grade of CuZn37Pb3 equivalent to BS 2874 is used to manufacture various brass threaded inserts in form of round, Hexagon, Square etc
Other grades which are followed as per custom requirements are CZ 121, CZ 131, C3604, CDA 360, and DTD 627 etc
High Grade Free Cutting Brass.
Any Special Brass Material Composition as per customer’s requirement
ISO Metric (MM Threads)
BSW Threads (Inches)
UNC, UNF,UNEF and NPT Threads
BSP & BSPT (Parallel & Taper Threads)
Any threads as per specifications
Any coating as per customer specifications
Inner Plastic Packing,
Wooden Carton Packing
Thread as per international Go and Not Go Gauge Standard.
Deep Groove for maximum Pull out Resistance.
Inner Diameter (ID) after threading with very close tolerance to prevent unrequired flush to enter into brass inserts.
